Reproducible measuring results for particle shape and size in a few minutes!

Experience the Particle Sizer ANALYSETTE 28 ImageSizer live at POWTECH 2019 • Hall 2 • Booth 2-227. It is ideal for all applications that require accurate and reproducible measuring results for both particle shape and size of powders and suspensions in a measuring range of 20 µm - 20 mm.

Dynamic Image Analysis instead of a microscope

With the principle of Dynamic Image Analysis, the FRITSCH ANALYSETTE 28 ImageSizer offers all benefits of an analysis via microscope, but records due to the fully automatic process with up to 75 images per second a considerably higher number of particles. Instead of just one image, any freely definable number of images can be recorded and evaluated. You can see the result of the analysis directly without any complicated evaluation just like with a microscope. Your advantage: Faster, representative results and higher precision in evaluation.

Absolutely reliable quality control in 3 simple steps

Ensure higher quality, reduced rejects and lower costs with the Particle Sizer ANALYSETTE 28 ImageSizer: fast, safe and uncomplicated by measuring particle shape and size. With short measuring times of less than 5 minutes and reliable reproducibility thanks to pixel-accurate evaluation. For always consistent results. Just add sample, start measurement and read evaluation.

Fast alternative to sieving

If you conduct many and frequent sieve analyses, the ANALYSETTE 28 ImageSizer is the ideal, time-saving alternative completely without weighing, assembling of a sieve stack and time-consuming cleaning. And with substantially reduced follow-up costs, as there is no need to calibrate or purchase new sieves. And additionally, you receive besides the particle size distribution, also valuable information about the particle shape.

Choose according to you needs.

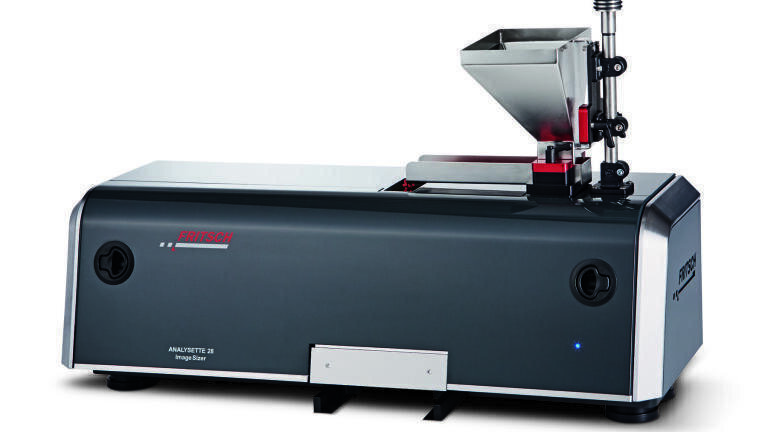

Efficient dry measurement of powders and bulk solids
The ANALYSETTE 28 ImageSizer is the ideal Particle Sizer for fast analysis of particle shape and size of dry, free-flowing materials in a measuring range of 20 µm – 20 mm. Via the optical analysis of the particle shape and particle size, you can identify damaged particles, contaminates, agglomerates or oversized and undersized particles accurately and fast and view them completely uncomplicated in single images.

Easy wet measurement of suspensions and emulsions
The ANALYSETTE 28 ImageSizer is in combination with the corresponding wet dispersion unit ideal for measurement of particle shape and size of suspensions and emulsions in a measuring range of 20 µm – 2.8 mm.

Wet dispersion is particularly suitable for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids.

And if your measurement tasks change, the ANALYSETTE 28 ImageSizer can be retrofitted and adapted at any time.

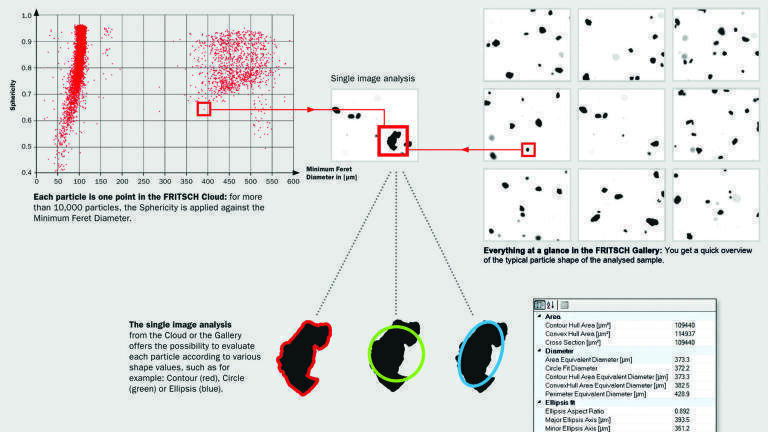

State-of-the-art, simple and fast evaluation via FRITSCH Cloud and Gallery
The evaluation of the measuring results is uniquely simple with the ANALYSETTE 28 ImageSizer. The evaluation software ISS displays each recorded particle clearly as a data point in the immediately available FRITSCH Cloud as well as in the FRITSCH Gallery. You freely choose which statement is of interest to you: for example the Sphericity in regards to the Minimum Feret Diameter, the aspect ratio, applied on the porosity, or the convexity as a function of the particle Cross Section. Or display the particle size distribution as a cumulative curve, as a bar chart or in a table form.

Test the FRITSCH Particle Sizers!
Send us your sample for an individual sample measurement – we will send you a detailed analysis protocol. Compare for yourself

Click here for up-to-date information on FRITSCH high-tech particle technology – from Dynamic Image Analysis to Static Light Scattering.
