Shape and size analysis with the NEW ANALYSETTE 28 with Dynamic Image Analysis!

Discover the new dimension of the FRITSCH particles measurement at the POWTECH 2013 - Hall 5  Booth 5-362!
The two models of the NEW ANALYSETTE 28 measure particle shape and size of powders, bulk solids, in suspensions and emulsions in the range of 20 µm -20 mm with Image Sizing. Simple. Flexible. Reliable.

The two new models of the Particle Sizer ANALYSETTE 28 at a glance:

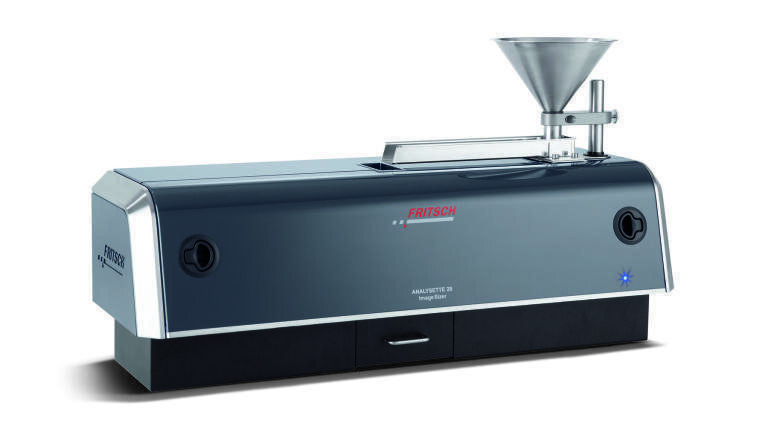

NEW ANALYSETTE 28 ImageSizer
For fast analysis of particle shape and size of powders and bulk solids in an extra-wide measuring range 20 µm - 20 mm

• High-performance camera with 4 lenses
• Comprehensive library for morphological analysis
• Practical tools for reliable quality monitoring
• Easy operation due to SOP control and report generator

Fast lens change
For equipping your ANALYSETTE 28 ImageSizer, choose between four different, easy interchangeable telecentric lenses. The measuring range can be optimally adapted to the measuring task by selecting the suitable lens. The instrument recognises the selected lens and confirms the selected measuring range.

Adapted feeding speed
The feed rate of the sample on the conveyance channel is according to the material automatically adjusted by AutoCheck, and saved in the SOP. In order to guide the sample material precisely into the measuring cell at the optimum depth of field even under rapid conveying conditions, the feeder chute can be simply adjusted with a dial.

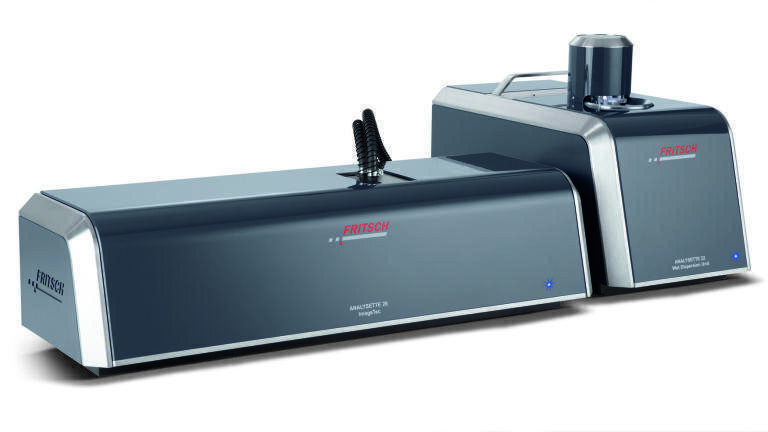

NEW ANALYSETTE 28 ImageTec
For fast analysis of particle shape and size in suspensions and emulsions in the measuring rage of 1 µm - 2 mm

• 5 lenses for automatic adaptation of the measuring range
• Comprehensive library for morphological analysis
• Practical tools for reliable quality monitoring
• Easy operation due to SOP control and report generator

Unique lens revolver
The lens revolver of the ANALYSETTE 28 ImageTec is equipped with 5 telecentric high-performance lenses which adjust completely automatic. The optimal lens required for the desired measuring range is simply selected using the input mask and can be saved in the SOP.

Optimal dispersion
For dispersion, the sample material or the emulsion to be analysed is pumped through the measuring cell in a closed liquid circulation system. The illuminated ultrasonic bath with freely adjustable ultrasonic-intensity ensures optimal dispersion - and the powerful centrifugal pump with individually variable speed ensures optimal transport of the sample through the measuring circuit.

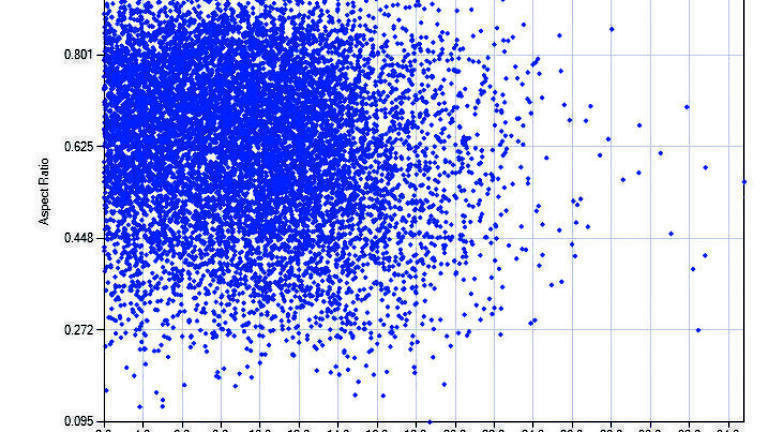

Brilliantly simple analysis in real-time: the FRITSCH Cloud
Even evaluation of the measuring results is uniquely simple with the ANALYSETTE 28. The brilliant idea behind this: The analysis image shows all the particles in the form of a cloud - the FRITSCH Cloud. It offers many more possibilities for recognising the most important measurement statements at a glance. Regardless of whether you would like to display the oversized grains - with an extremely low detection limit or the single image analysis for direct measurement of each particle from each individual image or you would like to display agglomerates, which are recognized and can be specifically separated during evaluation. The FRITSCH Plus: Even external images, for example from a microscope, can be loaded in the evaluation software and evaluated without problems.

Experience the entire spectrum of the FRITSCH particle sizing instruments from Digital Image Analysis to Static Laser Scattering live at the POWTECH 2013 -Hall 5 • Booth 5-362!

View Up-dated information with descriptive videos
