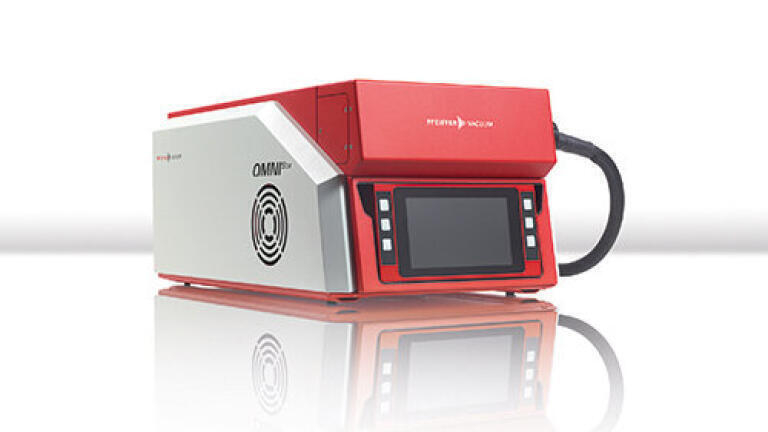

Pfeiffer Vacuum introduces OmniStar® and ThermoStar® next generation gas analysers
Aug 04 2020
OmniStar and ThermoStar GSD 350 are compact, portable benchtop analysers for analyzing gases at atmospheric pressure. They are particularly used for applications in chemical processes, in the semiconductor industry, metallurgy, fermentation, catalysis, freeze-drying and environmental analysis. The gas inlet is fitted with a heated capillary for use at up to 350°C. This prevents vapors from condensing during process gas analysis. Thanks to the two-stage inlet system, an almost segregation-free gas supply is possible.
The ThermoStar solution was specially developed for coupling with thermo balances. The inlet system with a quartz capillary and a platinum orifice ensures that even the smallest concentrations can be analysed.
The OmniStar was developed for a wide range of applications and uses a stainless steel capillary as well as a valve which can interrupt the sample gas stream. Unlike other analytical methods such as FTIR or GC-FID, the two new devices allow simultaneous detection of all gases within the mass range.
With the new PV MassSpec software, it is possible to perform qualitative and quantitative analyses. This software offers a clear and user-friendly platform for recording and displaying measurement data and parameter settings. Even complete measuring procedures can be programmed and automated. With a variety of equipment variants available, the mass ranges of 1 to 100 u, 1 to 200 u and 1 to 300 u are covered.
The two new models differ from comparable devices by their compact size and easy operation using an integrated 7ʺ touch display or a web user interface. The device can be fully controlled and the user can also perform simple measurements without a PC or PV MassSpec via a smartphone or tablet.
The low detection limit (depending on the mass range) of up to <100 ppb, the low gas consumption of 1 - 2 sccm and the fast measuring time (up to 1 ms/u) characterise the new analytical instruments. For extended process customisation, an integrated mass calibration device or a controlled purge gas system for corrosive gases are available.
