Compact Refrigeration Circulators now with new Multi-Touch Controller
Dec 01 2012

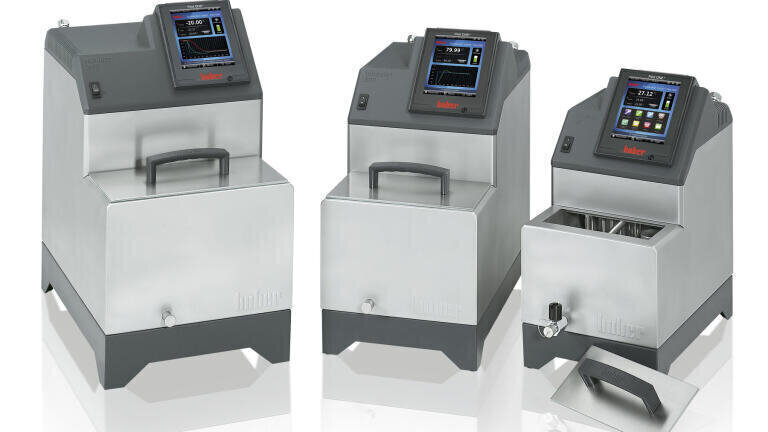

Huber Ministats are the smallest cooling circulators in the world! Despite their size Ministats have enough power to thermoregulate photometers, refractometers, viscosimeters, distillation apparatus, reactor vessels and mini plants and their compact form allows them to be placed in areas where space is at a premium, for example laboratory extraction hoods. Ministats can be used to control externally closed applications or alternatively objects can be thermoregulated directly within the bath.
The Ministat range consists of 3 models, which are available as either air or water cooled versions. Depending on the model, working temperatures are from -45°C to +200°C and cooling capacities of 600 watts can be achieved. The maximum admissible environmental temperature for continual operation is +40°C. A powerful variable speed pressure/suction pump allows optimum circulation and can be controlled using an optional pressure sensor, which protects delicate glassware. For energy saving and reduced heat dissipation all models have active cooling control, which regulates cooling in the event of a temperature rise or drop and ensures Ministats use only the energy they need.
The new Pilot ONE multi-touch controller comes as standard with 5.7” TFT display, 11 language options, USB and network interfaces as well as an user friendly touchscreen operation similar to modern smartphones.
Available in three software options, the Pilot ONE can be easily electronically upgraded to extend functionality and activate further features such as: programmer, cascade control, ramp function, user menus, calendar start and graphic display. Analogue connections according to NAMUR are available via the optional Com.G@te module which enables integration into plants and process control systems.
