Vibrating Cup Mill Now with Higher Grinding Performance

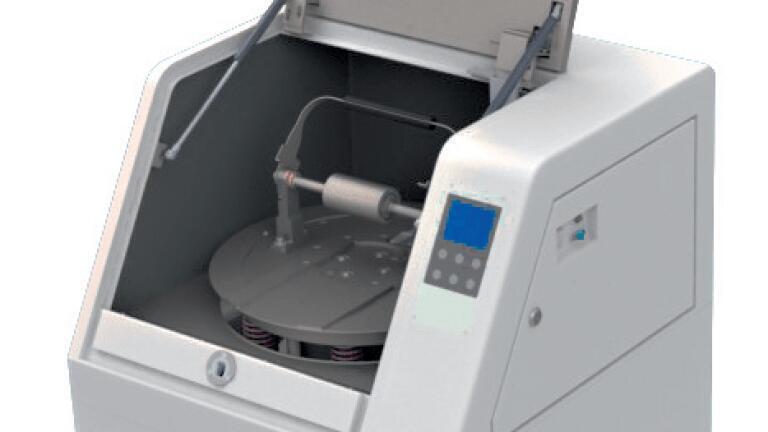

The Fritsch Vibrating Cup Mill PULVERISETTE 9 has been modified. Now in a new design and with the following features: increased grinding power now with up to 1500 rpm and new drive concept; LCD display with self-explanatory, multilingual menu navigation for exact to the second adjustment of grinding time, pause-periods and rotational speed - grinding cycles can also be programmed and stored; especially safe - tensioning and anti-twist protection of the grinding set, as well as the lock of the hood were additionally modified; especially user-friendly - the weight especially of the grinding sets 250ml, were enormously reduced - grinding sets made of chromium-free steel (50, 100, 250ml useful volume) and zirconium oxide in 50 and 100ml useful volume are also available; and now with complete noise insulation of the entire instrument.

The Fritsch Vibrating Cup Mill PULVERISETTE 9 is indispensable for all areas in which hard, brittle and fibrous materials must be ground extremely quick down to analytical fineness. And ideal for fast sample preparation, such as in the areas of spectroscopy preparation, ore and geology laboratories, mining and metallurgy, ceramics industry, agriculture and environmental science, infrared and x-ray fluorescence analysis. Users benefit from perfect, loss-free grinding results in the shortest times with ergonomically handling.

No similar mill offers a more convenient operation: The working position is ergonomically optimised, the ease of cleaning is without match, the grinding set is placed on a practical carriage, allowing it to be easily moved to the final position and rapidly fastened in seconds with a quick clamping system - which is back-friendly and saves energy and time. A special detector automatically detects when you use an agate or zirconium oxide grinding set for metal-free grinding and Fritsch the rotational speed independently.

A symmetrical eccentric developed by Fritsch ensures fast and safe clamping of the grinding set, which is also automatically monitored. The defined final position and an integrated anti-twist protection provide additional safety. Grinding sets in five different materials and three different sizes from 50ml to 250ml volume are available for the Fritsch Vibrating Cup Mill - for each application the suitable one.
