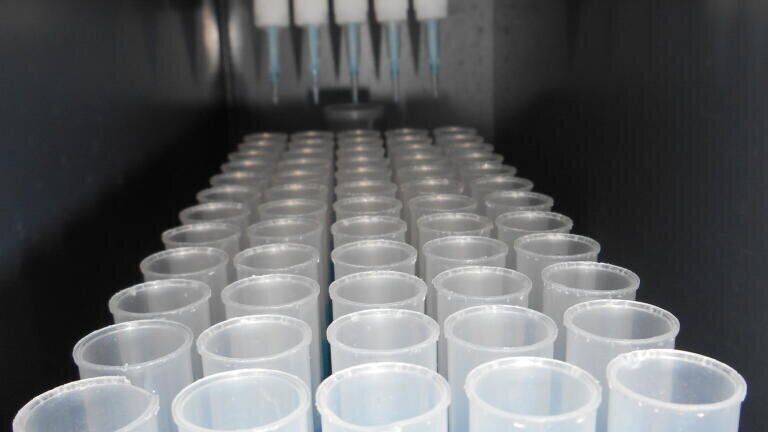

An innovative, high speed automated reagent dispenser

The perfect combination of traceability, precision and safety, for the most demanding analytical laboratory environments.

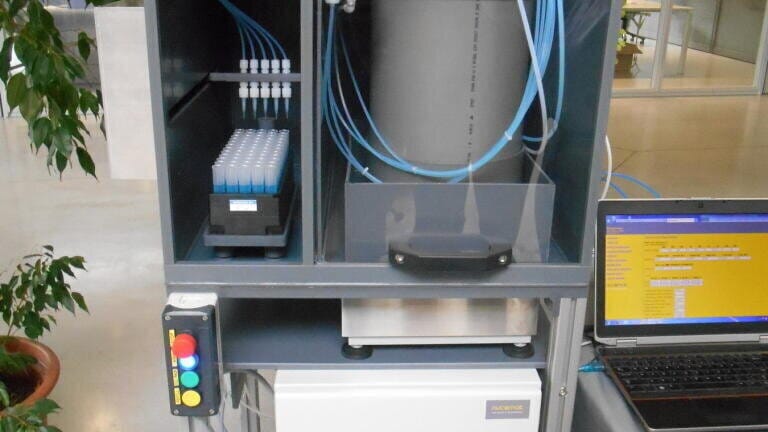

Manufactured by Nucomat; this system has been designed for quick reagent or acid dispensing in an accurate and safe manner; perfect for any laboratory that requires quick reagent additions to standard test tubes. Maintenance free pneumatic driven pumps, in combination with PVDF- tubing, making the system extremely reliable.

It’s high speed performance fills up to 60 tubes per minute, with a tube range of 0.5 - 15ml. The complete system is embedded into a safety enclosure, with a controlled acid fume control sensor (optional). The acid container refills are controlled continuously, and any leakage or breakdown in the sequence is identified by the RoBin software and will enter into safe mode.

Features and benefits:

  • Gravemetrically controlled, to guarantee accuracy, precision and safety.
  • Fully accessible via a PC, smart phone or tablet device.
  • Volume range between 0.5 – 15ml.
  • High speed performance; fills up to 60 tubes per minute.
  • Negative weighing principle for pump calibration and control of accurate dispensing.
  • CETAC or Gilson compatible (other configurations on demand).
  • Dimensions of the dispenser cabinet; 670 x 630 x 1700mm.
  • Weight of the dispenser system; 95kg.
  • Standard rack configurations;

40 tubes – 4 rows x 10 columns
60 tubes – 5 rows x 12 columns
90 tubes – 6 rows x 15 columns

For more details and images, click here.

Click here for video
