New Large Specimen Metal Evaporator/Sputter Coater
Jun 23 2015

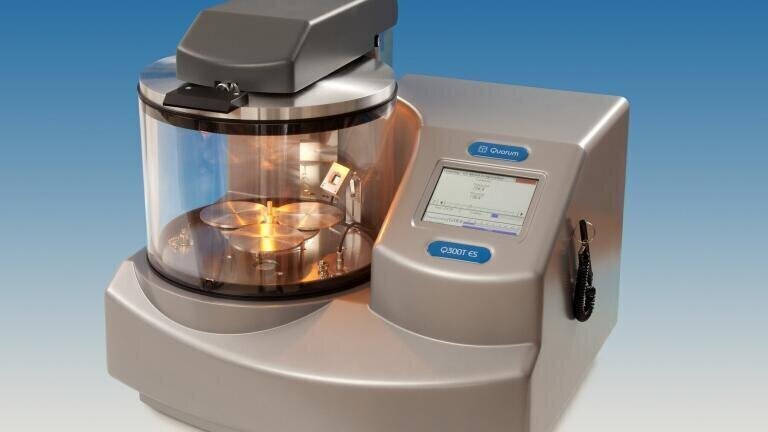

The Q300T ES is a large chamber, turbomolecular-pumped coating system ideally suited to metal evaporation onto large diameter specimens up to 6”/152 mm (for example a wafer) or smaller multiple specimens. The Q300T ES also comes with interchangeable sputtering and carbon evaporation inserts to allow a coating radius of up to 4”/102 mm.
The sputter coating insert will deposit both oxidising metals, e.g. chromium and aluminium and non-oxidising (noble) metals such as gold and platinum. A chromium target is fitted as standard.
The Q300T ES uses controlled ramped carbon rod evaporation to ensure optimum control of the process and quality of results (with or without optional film thickness measurement system). In addition the quality of the resulting carbon films is enhanced by the eradication of ‘sparking’ which is a common problem with less advanced coating systems.
The Q300T ES has a full range of optional accessories, including specimen stages and film thickness measurement which means the system can be tailored to the precise requirements of the user.
The Q300 series combines state-of-the-art design with an exceptionally high level of performance and flexibility. Built around a rugged moulded case with intuitive touch screen control, the Q300 series allows quick access to both stored and customer-entered coating profiles.
Like all other Quorum Technologies products, the Q300T ES comes with a generous three-year warranty and dedicated specialist support.
