Mass Spectrometry & Spectroscopy
Quantify Trace-Level Compounds in Water with the Agilent 1200 Infinity Series Online SPE Solutions
Nov 12 2013
Solid-phase extraction (SPE) is a powerful technique for sample preparation and analyte enrichment, but it usually requires time-consuming manual offline processing steps. The Agilent 1200 Infinity Series Online SPE solutions help scientists to more efficiently enrich analytes, remove matrix components, and lower detection limits for applications such as trace-level water analysis.
Online SPE LC-MS/MS in one step

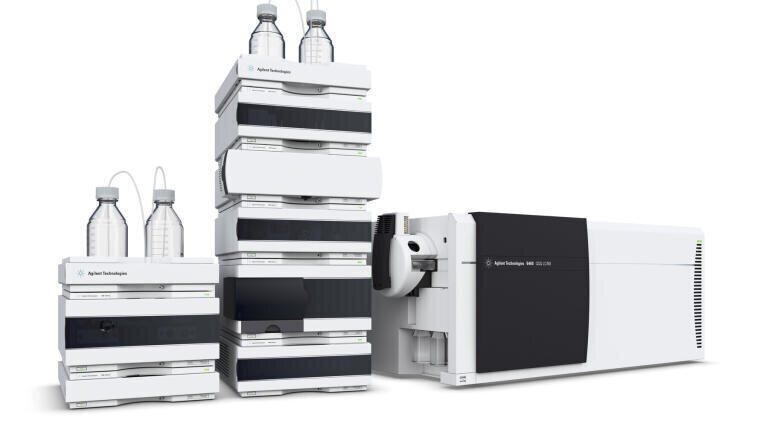

The modular design of the valve-based Agilent Online SPE solutions incorporates the Agilent 1290 Infinity Flexible Cube coupled with an Agilent 6400 Series Triple Quadrupole Mass Spectrometer. The Flexible Cube houses reusable SPE cartridges and up to two valves. Valve heads are easy to mount on the valve drives thanks to Agilent’s Quick-Change valve technology. A built-in pump flushes the sample onto the cartridges.
An extensive portfolio of valves makes it easy to customise Online SPE solutions for applications such as:
- Direct injection
- Multi-SPE
- High volume injection
- Flask sampling
The high precision and accuracy of the Agilent 1200 Infinity Series Online SPE solutions can be demonstrated in a broad range of applications.
Example: Online SPE enrichment of antibiotics allows detection down to 1 ppt
The table below shows antibiotics identified in drinking water at trace levels down to 1 ppt (LOQ) and with area deviations of less than 6%.
Name |
RT (min) |
Molecular mass |
Molecular ion |
Fragmentor |
Quantifier ion |
CE |
Qualifier ion |
CE |
Vancomycin |
10.25 |
1,447.43 |
724.80 |
120 |
144.0 |
12 |
100.1 |
40 |
Trimethoprim |
11.37 |
290.13 |
291.14 |
150 |
230.1 |
20 |
123.0 |
24 |
Ormetoprim |
11.88 |
274.14 |
275.15 |
150 |
259.1 |
24 |
123.0 |
24 |
Cefotaxime |
12.27 |
455.05 |
456.06 |
110 |
125.0 |
52 |
126.0 |
44 |
Tetracycline |
12.44 |
444.15 |
445.16 |
90 |
410.1 |
16 |
154.0 |
28 |
Ornidazole |
13.01 |
219.04 |
220.04 |
100 |
128.0 |
12 |
82.1 |
32 |
Chlorotetracycline |
14.31 |
478.11 |
479.12 |
125 |
444.1 |
20 |
462.1 |
12 |
Sulfamethoxazole |
15.11 |
253.95 |
254.06 |
95 |
92.1 |
28 |
108.0 |
20 |
Oxolinic acid |
16.08 |
261.06 |
262.07 |
85 |
244.0 |
16 |
216.0 |
28 |
Erythromycin |
16.79 |
733.46 |
734.50 |
120 |
158.1 |
32 |
576.0 |
16 |
Tylosin |
17.55 |
915.51 |
916.52 |
155 |
174.1 |
40 |
772.4 |
28 |
Nalidixic acid |
18.19 |
232.08 |
233.09 |
85 |
215.1 |
8 |
187.0 |
24 |
Flumequine |
18.66 |
261.08 |
262.08 |
75 |
244.0 |
12 |
202.0 |
32 |
The molecular ion of vancomycin is [M+2H]2+; all others are [M+H]+.
Fragmentor = voltage (V)
RT = retention time (min)
CE = collision energy (eV)
Table: MRM and DMRM MS method shows the optimum fragmentor and collision energy values for the individual antibiotics. Also shown are molecular, quantifier, and qualifier ions.
Download free application notes and watch a video demonstration of the Agilent Online SPE solutions online.
