High temperature, high force & high precision
Apr 07 2010

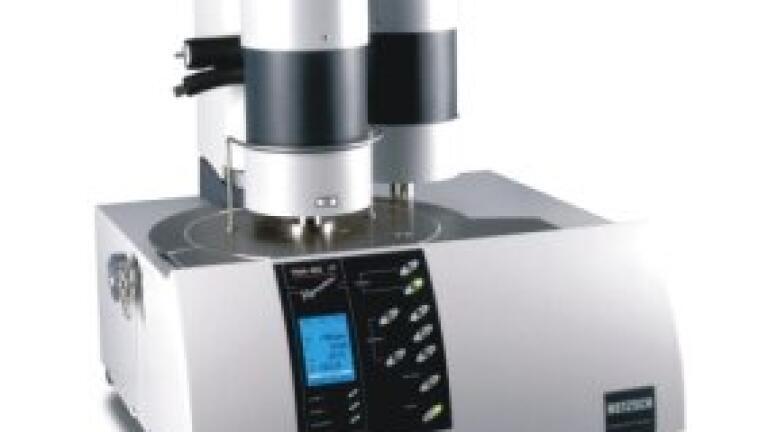

New Thermomechanical Analyzer TMA 402 Hyperion®
Thermomechanical analysis is a widely used tool to investigate expansion, shrinkage or softening of samples under a defined load. Applications range from polymer analysis to the field of ceramics and glasses.
The newly developed TMA 402 Hyperion® accommodates samples up to 30 mm long, whose thermomechanical properties can be investigated under a force of up to 3 N. A built-in force sensor ensures that forces can be reliably adjusted with mN-accuracy. Everything is completely software-controlled – gone are the times when additional weights were needed to adjust the force range.
The new instrument comes in two versions both of them allow the force to be modified stepwise or linearly at any point during the measurement. The premium version TMA 402 F1 additionally features the possibility of continuous force modulation as a saw tooth, square or sinusoidal wave with a freely selectable frequency up to 1 Hz. Hence, a great variety of experiments is possible, including:
• standard dilatometry
• stress sweep
• creep
• softening
• viscoelastic properties (Young’s modulus)
All components of the TMA 402 Hyperion® are vacuum-tight to ensure a pure atmosphere around the sample. Due to the compact design, all necessary electronics as well as the (optional) mass flow controllers are included in one chassis.
In order to expand possible applications to higher temperatures, e.g. sintering of ceramics, the modular system concept allows the exchange of the furnace:
• the low-temperature steel furnace can be equipped with a liquid nitrogen cooling system, allowing for a temperature range of -150°C to 1000°C
• the SiC-furnace can be used from ambient temperature upwards and reaches up to 1550°C

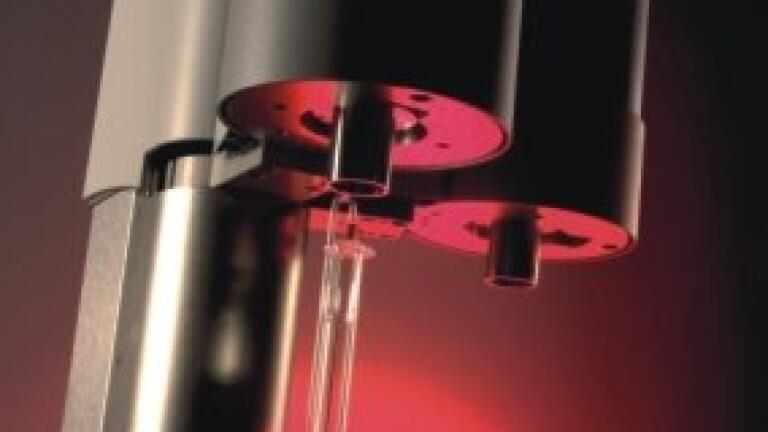

An extensive range of sample holder systems is available for expansion, penetration, tension or bending measurements – according to the desired maximum temperature, these are either made from fused silica or from alumina.
A Variety of Application Fields
Its flexibility and the wide range of different measurement possibilities make the TMA 402 Hyperion® the instrument of choice in countless application fields:
• Investigation of thermal expansion coefficients for all kinds of materials
• Analysis of glass transitions and softening point
• Characterization of viscoelastic properties
• Optimization of sintering processes
More information
For product enquiries please contact:
NETZSCH-Gerätebau GmbH
T. +49 (0) 9287 881 0
at@netzsch.com
www.tma402.info
