New miniTOC at Analytica – perfect fit to all HPW and UPW systems
Mar 02 2010

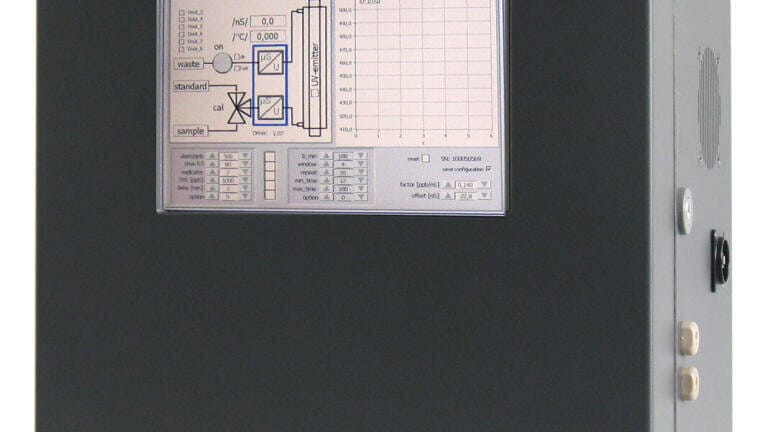

By introducing the new miniTOC membraPure presents a suitable instrument for all clients who need online control of their high end water quality. Having already various installations in pharmaceutical and chemical industry with the uniTOC instrument, membraPure offers now an entry level system with latest technology such as TFT touch screen operation.
The internal computer registers and controls all parameters for alarm and diagnosis. Exchange of digital and analogue data is achieved by USB interface. The miniTOC instrument uses the „classical“ flow through concept for TOC online control. It oxidizes the organic compounds by using a high energy, low voltage UV lamp in a specially made UV reactor to guarantee high and repeatable oxidation.
TOC content is determined by conductivity measurement. Automized functions like SST and Calibration give a high standard of safety and minimized operation costs for controlling the pure or ultra pure water.
If required the miniTOC measures every second the TOC content of pure and ultra pure water. The miniTOC has low operating cost since it requires only 20ml/min water and a new UV lamp once a year.

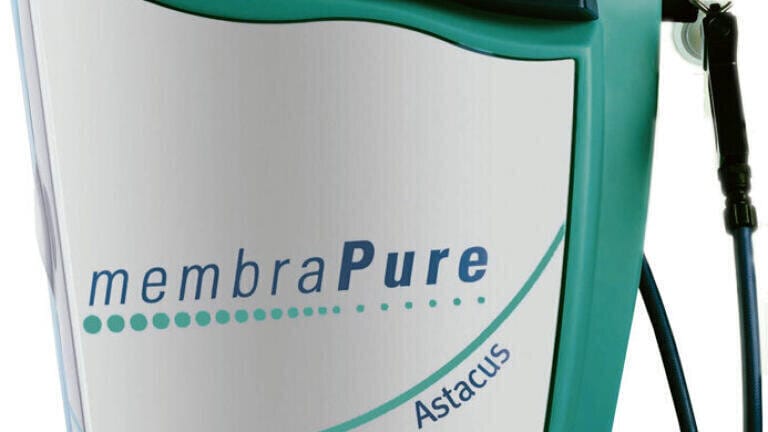

The new miniToc is the perfect system to fit you existing Ultra Pure Water or Highly Purified Water system. Or it is a must for your new EDI or Astacus UPW-system from Membrapure.

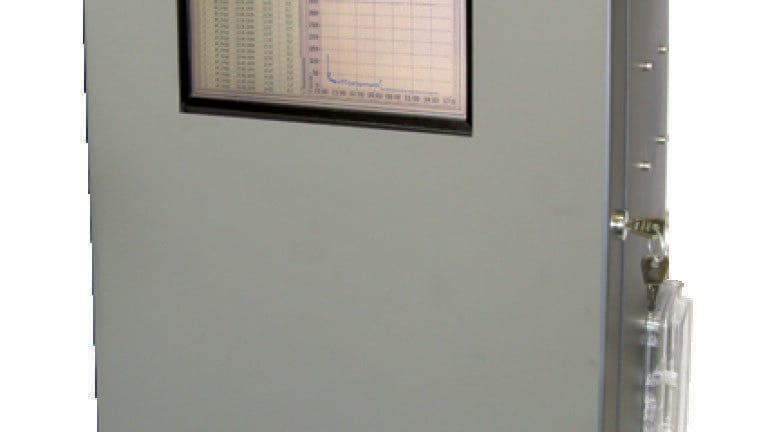

For applications in less pure water or where various organic contaminations can happen, the uniTOC with its high end NDIR detector is your choice. It operates in many different fields of applications like pharmaceutical industry, power plants, microelectronics, chemical industry as well as the production and surveillance of potable water.
The uniTOC- analyzers oxidize the organic compounds by using a high energy, low voltage UV lamp and the resulting carbon dioxide is detected and measured by CO2 selective NDIR cells. An internal computer with touch screen controls the instrument and registers all parameters.
Qualification of the systems is performed according to IQ, OQ und PQ procedures.
Please visit our booth at Analytica Hall A1 Booth 412 for information about miniTOC, uniTOC, our water purifications systems as well as our Amino Acid Analyzer and Ionchromatograph. Or get more information on our website www.membrapure.de
