Laser particle sizing at the push of a button: 10 nm – 2100 µm

Due to the new optical design and the wide measuring range, the NEW FRITSCH Laser Particle Sizer ANALYSETTE 22 NanoTec is the universally applicable Laser Particle Sizer for efficient particle size analysis down into the nano range – in production and quality control, research/development.

With the Laser Particle Sizer ANALYSETTE 22 NanoTec particle measurement becomes a simple matter, for professionals as well as for any employee. No prior knowledge is required. Just start the programme, select a SOP and add the sample – the rest takes place completely automatic. Fast. Reliable. Efficient.
Your advantage: extremely simple operation, short analysis times and consistently reproducible and reliable results. And a convincing combination of price and performance.

New optical design
The very large measuring range from 0.01 µm to 2100 µm of the ANALYSETTE 22 NanoTec results from the combination of two lasers with two different measuring cell detector spacings: Large particles are detected using an infrared laser with a large distance to the measuring cell, for small particles a green laser with a small distance to the cell is used, which permits the detection of the forward scattered light up to a scattering angle of 65°. The measurement of smallest particles down into the nano range is performed by the green laser light for backward scattering. Specially arranged detectors ensure this. Especially convenient: The total measuring range of 0.01 – 2100 µm in the ANALYSETTE 22 NanoTec can be detected without converting the optical elements.
The result: perfect measurements with outstanding reliability, meaningful comparability and consistent reproducibility.

Intelligent modular design

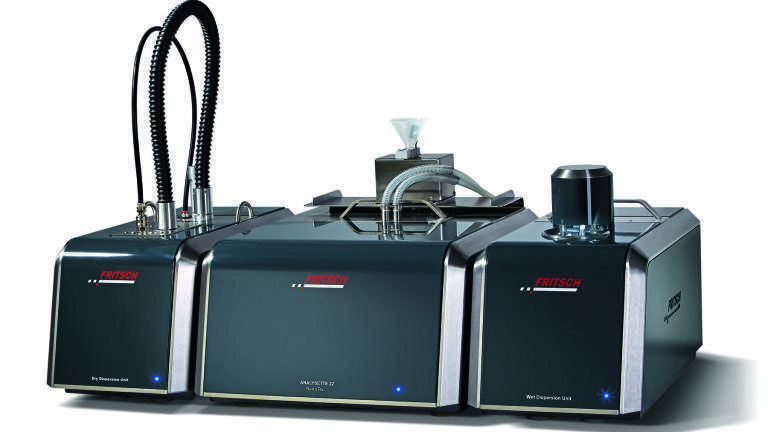

The ANALYSETTE 22 NanoTec consists of a compact measuring unit that can be quickly and easily combined with different dispersion units for dry or wet measurement. Select the wet dispersion unit for wet measurements of solids and suspensions. For wet dispersion of very small quantities, the automatic small volume wet dispersion unit SVA with illuminated dispersion bath and the compact manual small volume wet dispersion unit SVM are available. The practical, fully automatic AutoSampler makes it easy to perform a series of measurements with the wet dispersion unit. For dry measurements of not too fine, free-flowing materials use the dry dispersion unit with efficient degradation of agglomerates. For dry measurement of agglomerates or free-flowing materials, choose the falling chute.
Your advantage: This allows you to buy only what you need for your applications.

Practical fast-switch-system

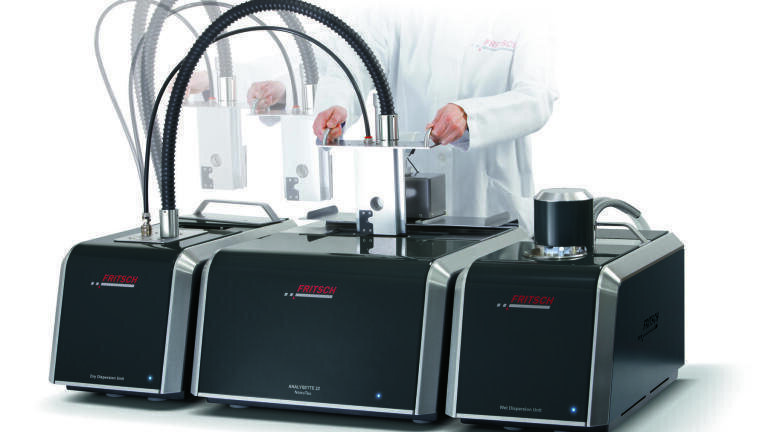

The measuring cells of the ANALYSETTE 22 dispersion modules are located in practical cartridges that can be exchanged with a single motion when switching between wet and dry measurement – without changing any hoses or modifying the instrument.
Your advantage: fast and easy change of the dispersion method.

So simple, but also very flexible
The ANALYSETTE 22 NanoTec software contains completely predefined Standard Operating Procedures – SOPs for short – for nearly all typical measurement tasks, making operation especially easy. Via a well-arranged input mask, you are completely free and flexible in modifying these SOPs to perfectly suit your measurement requirements.

Perfect fully automatic evaluation

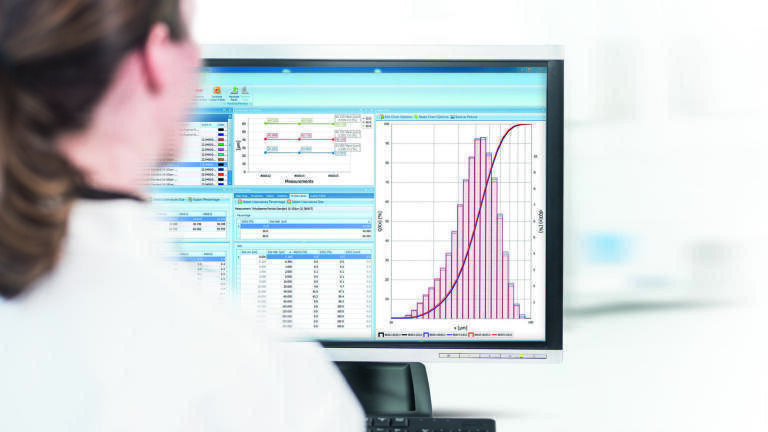

For the control, recording and perfect evaluation of your measuring results your ANALYSETTE 22 NanoTec is delivered with a computer on which the FRITSCH MaS control software is already fully installed. The software MaS control is easy to learn and guides you through the entire measurement process in a largely self-explanatory manner. In addition to integrated standard reports, the freely editable report generator allows you to organise your measurement reports exactly according to your needs.
Your advantage: Simple, secure, flexible.

Your advantages with the ANALYSETTE 22 NanoTec

• Measurement even of nano particles in an extremely wide measuring range of 0.01 - 2100 µm
• Fast, automatic particle size analysis
• Simple measurement with short measuring times
• Especially high measurement precision due to the analysis of 110 channels
• Consistent reproducibility - reliable comparability
• User-friendly operation
• Quick change between wet and dry measurement
• Fast and simple cleaning
• Short analysis times

Test the FRITSCH Laser Particle Sizer
Send us your sample for a free of charge sample measurement – we will send you a detailed analysis protocol. Compare for yourself.

Please click here for current information on FRITSCH particle sizing technology – from Static Light Scattering to Dynamic Image Analyis.
