Discover new possibilities of process visualisation with fingertip control
Mar 02 2016
Experience our new Evoqua ultrapure water equipment series for the production of type 1 water.
We provide the best solution for all your water quality demands and applications in the laboratory.
Discover the new possibilities of our process visualisation – with a fingertip, all information at one glance.

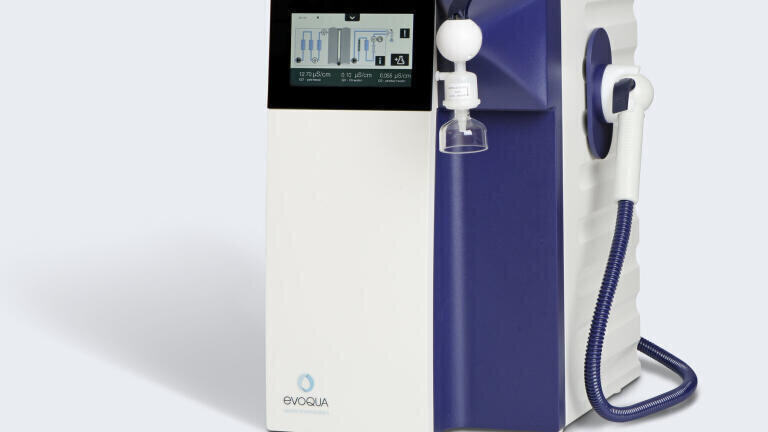

The Ultra Clear™ TP bench top/wall mounting systems are designed for maximising space saving installations. Each system is equipped with economical state-of-the-art purification technology.
Water quality with a resistivity of 18.2 MΩcm and a TOC level between 1-3 ppb far exceeds all reagent water quality standards including: ASTM Type 1, CLSI and ISO 3696 Type 1.
All systems that include UV oxidization, TOC monitoring (TM) and ultrafiltration produce the highest possible water quality. These units deliver RNase-, DNase- and DNA-free water.
Systems are also capable of producing purified water with endotoxin levels of < 0.001 EU/ml.
The dispense flow rate of ultrapure water is up 2 l/min. The high resolution display indicates the water conductivity in µS/cm or resistivity in MΩcm with the corresponding water temperature.
Cartridge changes are very simple and fast due to quick and easy access to the replacement parts.
A single UV bulb is used for the oxidization of organic compounds and TOC measurement.
A built-in automatic self-cleaning/sanitisation mechanism extends the life of the ultrafiltration module. Pure water dispensing is made easy by simply activating the valve lever. A continuous flow of pure water is achieved by simply placing the draw-off lever in an upright position.

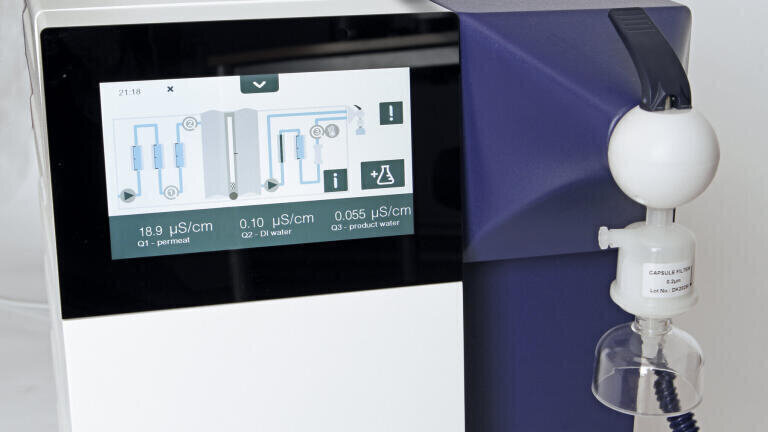

The new Interface Panel with touch control enhances your daily work
- Self-explanatory functional diagram (detailed information about all components)
- Intuitively operable
- High Resolution 7“ Touch-Display
- Easy to clean glass surface
Why use a dictionary if the UCTP can speak your language!
- Plaintext possible many languages
- Display of all language characters
Why pay extra for a flexible dispense systems? If you have them already on the UCTP!

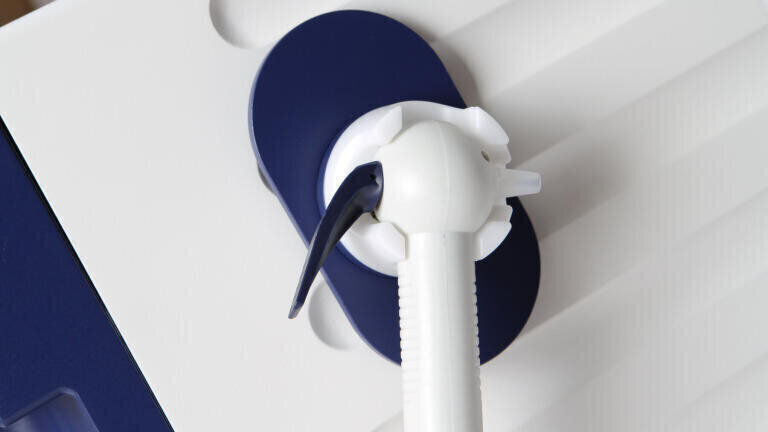

- Second dispenser optional
- User-friendly (left or right sided) mountable
- Simultaneous water extraction at both dispensers possible
- Easy to use and highly accurate volume removal
- Different sterile filters available
Why take the rist of loosing data when the system can save these for years?
- Easy data transfer via USB stick or SD memory card
- Nearly unlimited data recording and logging function
- Adjustable recording interval of all important water parameters
Why guess the system status? When the UCTP shows you!
- All quality parameters at one glance
- Operating states available at your fingertips
No guessing when to change consumables, UCTP tells you when!
- Consumptions are available
- Direct reading of module capacities
Why order the service when you can do almost everything yourself?
- High user and service friendliness
- Easy module exchange via quick coupling
- Easy UV lamp replacement through hinged rear wall
Why waste energy, when the UCTP can save it!
- Intelligent Power Management
- Low power consumption by intermittent control of the pump
- Low heat input
