Innovative Thermal Cyclers Save Time, Space and Energy

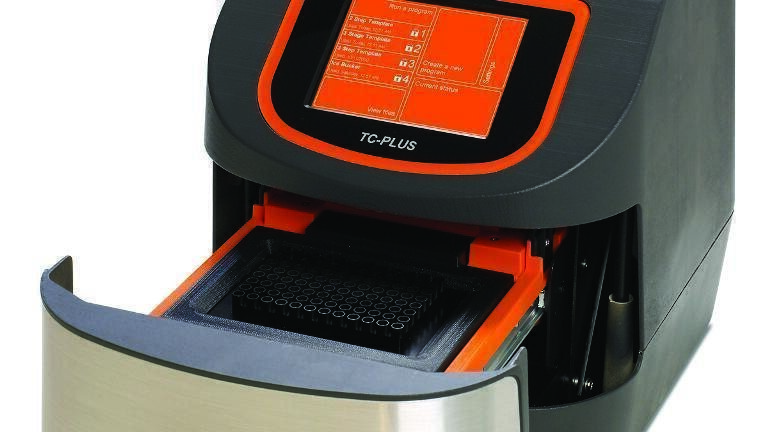

Techne offers the TC-PLUS range of thermal cyclers, a feature-packed combination of Server and Satellite units giving complete flexibility to configure any multi-block format. These versatile thermal cyclers feature some of the fastest aluminium blocks available, providing a ramp rate of up to 5°C per second, as well as innovative energy-saving technology and a space-efficient design. The latest Techne TC-PLUS thermal cyclers incorporate stand out innovations such as the energy-saving Thermal Energy Recovery System (TERS®) and an automatic non-motorised heated lid. Meeting an important requirement in today’s energy-conscious market, the TERS® System achieves reduced operational costs by making vital energy savings, harnessing some of the heat transferred from the block during the cooling phase for re-use in the next heating phase. Almost 15% energy savings can be realised on three-step PCR programs, and around 9% on two-step protocols.

The unique front-loading sample drawer uses the force applied to push the drawer closed to lower the heated lid into position with the correct pressure on the sample tubes or plate. Front loading allows units to be stacked without any compromise in function, and front-to-back vented airflow enables close side-by-side positioning, further reducing the bench space taken up. The Techne TC-Plus is the ideal tool for use when optimising protocols for fast PCR, with its flexible programming and rapid block ramp rates. The 5.7inch VGA colour touchscreen with graphical display is intuitive and easy to use. At least 1,000 programs can be stored and the front-positioned USB port makes it easy to transfer protocols between cyclers or laboratories, and archive run log files.

Three easily interchangeable blocks – 96 x 0.2ml, 60 x 0.5ml and 384-well microtitre plate – all have a temperature gradient option (up to 30ºC) for efficient optimisation of PCR conditions. The USB connection and PC software option enable multiple TC-PLUS cyclers and Satellites to be networked easily, for high throughput PCR using 96-well or 384-well blocks. Satellite units can be controlled from the TC-PLUS server or from a PC with the Workbench software but have no individual user interface.
