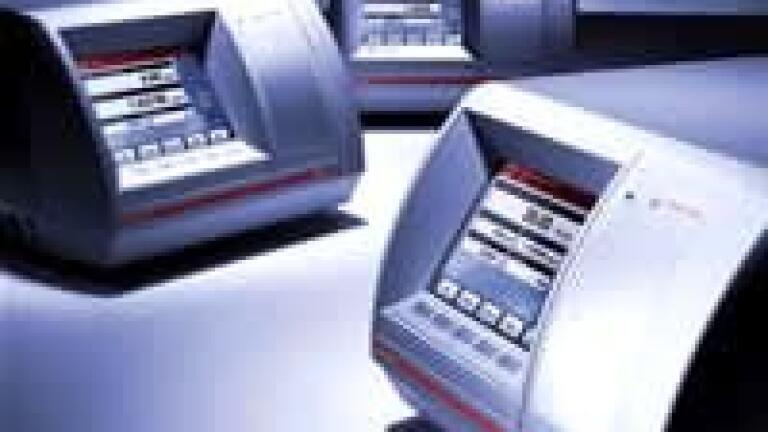

New Density Meters

Anton Paar DMA density meters always were the benchmark. Now Generation M is expanding the limits of digital density measurement, providing a new level of user confidence and previously unattainable comfort. This new density meter generation stands out for unparalleled ease of use and complete transparency and traceability of the sample filling and measurement process. These new features allow complete confidence
in the sample filling and measurement process being correctly performed and therefore complete confidence in the outstanding quality of the measurement results:

FillingCheckTM
(patent application filed) automatically detects incomplete filling
or gas bubbles in the filled-in sample. It alerts the operator of
potential measurement deviations and documents the incident.

U-ViewTM
displays live images of the oscillating U-tube sensor and the entire
filled-in sample. Potential problems with the sample can be reliably
identified in real-time or at a later review of the images automatically
stored in the memory. This makes Generation M instruments the first density meters to allow later verification of the results particularly when using automatic sampling systems. Operators can safely walk away and let the instrument do the work.

ThermoBalanceTM
eliminates the need for multi-temperature calibrations and allows fast and accurate density measurements in the entire temperature range. It eliminates drifts caused by temperature stress, such as when filling samples at temperatures greatly different from the measuring temperature, and provides stable readings over extended periods of time.

What else is new with Generation M?

Apart from providing automatic sample viscosity correction and
high-precision platinum thermometers for temperature control,
as in the previous generation, Generation M automatically determines the local air pressure, making air adjustments exact whatever the location. The user interface has a new design: A large, easy-to-read
colour display with touchscreen function simplifies routine
operations.

For harsh environments, additional function keys are provided so that the display does not need to be touched and stays clean. A keyboard, mouse and barcode reader can be connected for convenient operation.
Four USB, two RS232 interfaces and an Ethernet interface allow
universal data transfer as well as secure operation for GMP, GLP
and 21 CFR Part 11 applications.

PC monitors of any size can be connected so that the measuring results are legible even over large distances. Space-saving plug-in sample changers manage sample viscosities of up to 35,000 mPa.s.
