Evaluation of Recovery of Basic Analytes Using a Mixed-Mode Strong Cation Exchange SPE Microplate by HPLC-MS

Sample preparation is important in any type of chromatography analysis. While it can add on extra time, the process of cleaning up samples before injection onto a system result in a range of benefits to the analyst - better recoveries, more reproducible analysis, less downtime of instruments, reduction of troubleshooting, as well as less complex chromatograms due to the reduction of unwanted compounds being injected. All of these can result in time saved which could be needed for repeated work or maintenance on instruments.

Traditional SPE products consist of a loose-filled resin sandwiched between two frits. While this is known to work, it can come with some problems which can complicate analysis or result in poor data being produced. These problems are a result from how the product is packed into a well or cartridge - voiding can occur under the top frit; channels could form through the resin bed which can cause less efficient interactions between the resin and the analyte(s) or there could be variation on compression or resin weight that was dosed into each product.

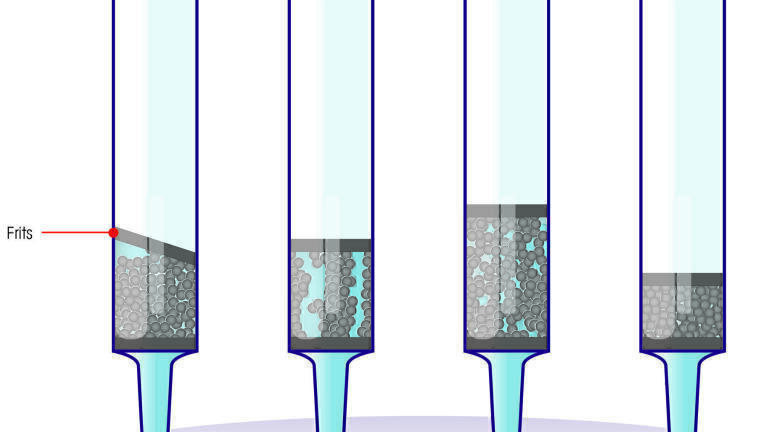

Figure 1. Common issues associated with loose-filled SPE methods.
The Microlute® CP SPE products consist of a unique hybrid design of a solid interconnected network of evenly distributed pores combined with retentive media. The advantage of this design is that flow through the product is consistent and increases the interaction between the analytes and retentive media present within the structure. These two features combined results in a product which offers both high recovery values as well as reproducible results. This technical note uses the 30 mg Microlute® CP Strong Cation Exchange (SCX) 96 well plate to compare performance in recoveries and reproducibility against five competitor loose-filled 30 mg SCX products.
Figure 2. Schematic of the hybrid polymeric structure showing the porous structure of the frit with the active resin immobilised throughout the pore structure.

Introduction

The Microlute® CP SCX product is a mixed-mode polymeric SPE product - a combination of ion exchange and reversed phase. This results in a product that has two retention mechanisms which can be fine-tuned to allow more flexibility in the SPE method. The reversed phase functionality allows for separation of analytes on hydrophobic interactions, allowing for retention to be altered by organic modifier concentration. Whereas ion exchange allows for selective strong ionic interactions between the resin and the charged analytes. The introduction of polymeric resins to SPE has resulted in some extra advantages over using silica-based resins [1]. These include:
• Polymeric structures do not contain any of the highly active sites found in silica. These include silanol groups which can cause unwanted secondary interactions with analytes which in some cases could cause irreproducible recoveries.
• Silica’s structure is also very susceptible outside of the pH range of 2 - 7.5. If pH is outside this range, hydrolysis of the silica or bonded functional group on the surface could occur [2]. This will result in very poor and irreproducible recoveries. On the other hand, polymeric resins are resistant to pH allowing them to work over the whole pH range (pH 0 – 14).
• Functional groups bonded to a silica surface need to be conditioned with an organic solvent to activate the retention mechanism then equilibrated with an aqueous solution. Whilst polymeric resins do not necessarily need to go through this conditioning step.
• Polymeric resins are less sensitive to drying out during the SPE process where silica resin can become dry and lose their retentive function [3].

Strong ion exchange does not work well for strongly acidic or basic analytes (analytes which have a charge over the whole pH range) due to the irreversible binding of charged analyte to the charged ion exchange resin. Weak analytes do work well with strong ion exchange. This is because it is possible to turn the analyte’s charge on or off for a weakly acidic or basic analyte allowing selective binding with a change of pH. To optimise this binding, the 2 pH rule is applied:
• When the pH of the solution in which an analyte is dissolved is equal to the pKa value of the analyte, the analyte is 50% ionised, pH can then be used to adjust how ionised a compound is:
◊ Acidic: 100% ionised: 2 pH above pKa or 100% un-ionised: 2 pH below pKa
◊ Basic: 100% ionised: 2 pH below pKa or 100% un-ionised: 2 pH above pKa
Figure 3. A diagram to show the 2 pH rule for a weak acid compound and weak basic compound, with a pKa of 4 and 8, respectively.

For a typical strong ion exchange method, analytes are pre-treated to a pH where they are charged and then loaded onto the resin. This allows them to bind strongly to the resin with the ionic interactions. The same pH will be maintained on the wash steps of the method allowing the analyte(s) to keep binding to the resin while washing off interfering com- pounds. To allow elution, pH is changed to neutralise the charge allowing the analyte(s) to stop binding to the resin and elute from the product.

Experimental

 Table 1. HPLC conditions.
LC system    Agilent LC-MS, (With a 1260 LC
and Single Quadrupole Mass Spectrometer)
Column    Raptor Biphenyl 30 x 2.1 mm, 1.8 µm
Column temp.    45°C
Injection volume    2.00 µL
Flow rate    600 µL/min
Mobile phase A    0.1% Formic acid in water
Mobile phase B    0.1% Formic acid in methanol

Solvent Composition    Time (min)    A%    B%
    0.10    95.0    5.0
    4.30    57.5    42.5
    6.50    57.5    42.5
    6.51    20.0    80.0
    8.20    20.0    80.0
    8.21    95.0    5.0
    14.00    95.0    5.0


Table 2. Mass Spectrometer Conditions.
Parameter    Value
Gas Temperature    350°C
Gas Flow    13 L/min
Nebulizer    30 psi
Capillary Voltage    4000 V
Dwell Time    100 V
Fragmentor Voltage    SIM
Scan Type    ESI
Ion Mode    ESI

Chemicals

Caffeine, salbutamol, procainamide, atenolol, pindolol, propranolol, desipramine, protriptyline, imipramine, amitriptyline, nortriptyline, formic acid, methanol, water, 35% ammonia solution.

Sample Preparation

A stock of 1,000 µg/ml of all the basic analytes was made in methanol. A basic load solution was made by diluting 500 µL of the stock solution to 50 mL with water containing 0.1% (v/v) formic acid.

Solid Phase Extraction Method

For both the Microlute® CP SCX product and competitor products, a total of 12 wells were tested. Each well tested was conditioned with 1,000 µL methanol, then equilibrated with 1,000 µL of water. 1,000 µL of basic load solution was then loaded onto the plate in full. Once loaded, 1,000 µL of water containing 0.1% (v/v) formic acid solution in water was used to wash the sorbent. Followed by a strong organic wash of 0.1% (v/v) formic acid solution in methanol.
To elute the analytes of interest, 500 µL of methanol containing 5% (v/v) ammonia was used. The eluent was then evaporated to dryness at 35°C under N2 using a Porvair Sciences Ultravap® Levante (# 500226). A repeat elution was performed using another 500 µL of methanol containing 5% (v/v) ammonia and evaporated to dryness with the same method.
To reconstitute each sample, to each collection vial, 10 µL of 1,000 µg/ml caffeine (ISTD) was added, followed by 790 µL of 60% (v/v) methanol/water containing 0.1% (v/v) formic acid to create a 12.5 µg/mL solution. A further dilution was made using 40 µL of 12.5 µg/mL solution with 760 uL of 60% (v/v) methanol/water containing 0.1% (v/v) formic acid, creating 0.625 µg/mL solutions ready for injection.

Results and Discussion

Figure 4. Chromatogram of basic analytes calibration standard. Peak assignments can be found in Table 3.
Table 3. Properties and MS parameters for the basic compounds analysed - aPredicted value from Pubchem [4].
No.    Compound    Type    R.T
(min)    Formula    Molecular Mass    LogPa    pKaa

1    Salbutamol    Basic    0.70    C13H21NO3    239.31    0.3    10.3
2    Procainamide    Basic    1.04    C13H21N3O    235.33    0.9    9.3
3    Atenolol    Basic    1.23    C14H22N2O3    266.34    0.2    10.4
4    Pindolol    Basic    3.09    C14H20N2O2    248.32    1.8    9.3
5    Caffeine    ISTD    3.71    C8H10N4O2    194.19    -0.1    14.0
6    Propranolol    Basic    5.56    C16H21NO2    259.34    3.0    9.4
7    Desipramine    Basic    6.87    C18H22N2    266.40    4.9    9.6
8    Protriptyline    Basic    6.98    C19H21N    263.40    4.4    9.7
9    Imipramine    Basic    7.09    C19H24N2    280.40    4.8    9.4
10    Nortriptyline    Basic    7.32    C19H21N    263.40    3.9    10.5
11    Amitriptyline    Basic    7.57    C20H23N    277.40    5.0    9.4

Recovery Comparisons

Figure 5. Analyte recovery comparisons against other commercial SPE products.
Reproducibility Comparison
Figure 6. Analyte %RSD comparisons against other commercial SPE products.

For reproducibility, a lower %RSD means the recovery was more reproducible. The analyte’s %RSD values can be seen in Figure 6. The Microlute® CP SCX managed to maintain a %RSD value of less than 2.6% for every compound analysed. It outperformed every competitor for reproducibility on each compound with only amitriptyline being closely matched. There was no issue of irreproducible results for either the most extreme hydrophilic compound or the most hydrophobic. This again shows that the Microlute® CP SCX product is performing excellently across a wide range of basic analytes.

Summary

The Microlute® CP SCX 30 mg 96 well plate can effectively retain a wide range of hydrophilic and hydrophobic basic compounds. It offers advantageous recoveries across the range of different classes of analytes. Lower %RSD values are seen when comparing against competitor plates for every compound analysed in this study - 1.6%RSD on average for the Microlute® CP SCX compared to the 2.4%RSD (best competitor) and 5.9%RSD (worst competitor). This ensures the product gives reliable and reproducible results which is an important metric in testing where confidence in the data output is required.

References

1. C. F. Poole, Solid-Phase Extraction, Elsevier, 2020, p. Chapter 3: Porous polymer sorbents.
2 P. V. Brady and J. V. Walther, “Controls on silicate dissolution rates in neutral and basic pH solutions at 25°C,” Geochimica et Cosmochimica Acta, vol. 53, no. 11, pp. 2823-2830, 1989.
3. M. N. Qureshi, G. Stecher, C. Huck and G. K. Bonn, “Preparation of polymer-based sorbents for solid phase extraction of polyphenolic compounds,” Central European Journal of Chemistry, vol. 9, no. 2, pp. 206-212, 2011.
4 “PubChem,” National Library of Medicine, [Online]. Available: https://pubchem.ncbi.nlm.nih.gov/. [Accessed 25 04 2021].
